The Ultimate Spring Over Axle Rockcrawler YJ

Our shop masterpiece. Requirements? It has to be just shy of a buggy, and still be all Jeep. Must be rock solid on the street and amazing on the trail. Have gobs of travel (1271 on the RTI). Be good on asphalt, mud, and rocks. Have sandpaper like traction.

We started with some 14″&12″ travel shocks, a set of Rubicon Express Springs, some Waggoneer Dana 44’s and a bunch of spare metal, and sat down with a ruler, cad, and started hacking and welding.

The results? One heck of a combination of engineering, custom suspension work, a TON of fabrication and about 500 hours of sweat by us and a bunch of friends. Below is the mods list, and you can view some more pictures in the thread in the forums.

Feel free to ask questions in the comments section below.

BODY & Armor

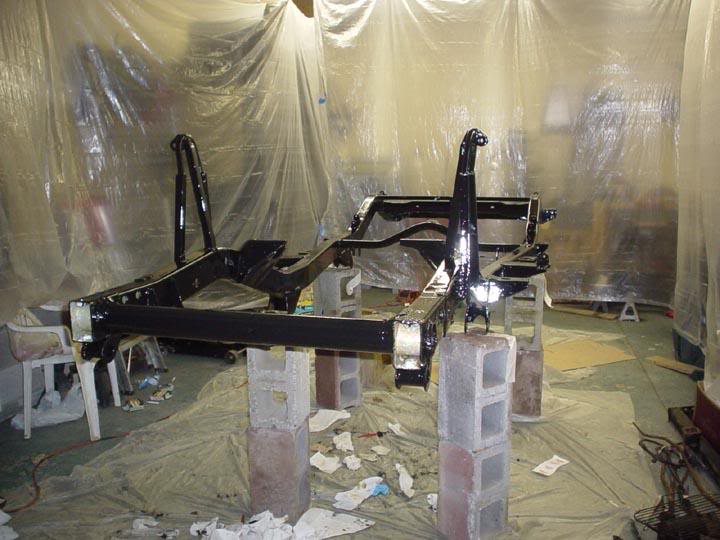

1994 Jeep Yj frame, modified, hot dip galvanized, Custom Body Cage & Shock Mounts
6pt roll cage, w/frame tie-in
Custom Made Front and rear bumpers .25 wall DOM 2×4 square tube & .120wall dom round (stinger)
Warn gas tank skid
4xd sliders
custom limb risers
custom in cab spare tire mount – interchanges with rear seats using stock mounts
lined & undercoated tub
Smittybuilt Waterproof 9500lb winch
Daystar busing kit
Stainless everybolt
3″ bodylift to clear accy’s

Motor & exhaust
4.0 ho
Full MSD ignition, superconductor wires & coil, .45 gap plugs
Optima Yellowtop
Throttle body spacer
Custom air intake w/ AEM dryflow filter & prefilter
Full OnBoard Air system/tank/regulator etc.
Pace Setter Headers
Magnaflow hight flow cat
AFE Power 3″ stainless cat back

Stock AX-15
Custom Made RAM Racing clutch & pressure plate
Stack 3speed Triple Stick Monsterbox – 1:1 3.5:1 5.5:1
Tom Woods CV rear driveshaft
2000 Jeep TJ front CV driveshaft swap
37″ x 12.50″ R17 Goodyear MTR Kevlars
Centramatic Balancers
Custom Dish pro comp wheels

Front Axle 1986 Jeep Grand Waggoneer Dana 44
4.88 Gears
Ox Locker
1975 Chevy flat top knuckles milled & drilled for high steer.
Ford D44 hubs 5 on 5.5 pattern
Warn Premium Hubs
Waggoneer Brakes w/bendix parts
1 Ton steering, PartsMike arms, 1 ton ends, .25″ dom milled tubes

Rear Axle 1987 Cherokee Dana 44
4.88 Gears
Ox Locker
Superior chromoly axles
Teraflex disc conversion
Custom grafted ebrake, handle transplant from 2000tj for centerpull

PRP Racing suspension seats
Simpson 5 point harnesses (cage mounted)
Grant steering & shifters
On Board Air gauge package and hookups
Hand Throttle
TJ Ebrake
Radioshack CB
Sony Stereo & speakers & 10″ sub
MB Quart 6 channel marine amp
Twin camera system (front and rear for offroad)

Springover – Custom – using Rubicon Express 1.5″ 6 leaf SOA packs
Rancho RS9012 14″ travel shocks front – Custom hoops
Rancho RS9010 12″ travel shocks rear – Custom hoops
Daystar greaseable shackles & main eye bushings
Traction bar
LOTS of other stuff I am sure I forgot
